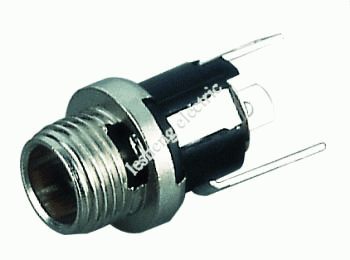

DC Socket

DS026

  • Times：2018-01-02 08:24:00
  • DS026
  • Online
Specifications:
1. 主体材料Body Material: Black Glass-Fiber P.B.T.94VO
2. 电气参数Operating data: 2.5A, 48V
4. 接触电阻Contact Resistance:< 5mΩ
5. 绝缘电阻Insulation resistance: >100 MΩ/500Vdc
6. 耐压Dielectric strength: 2000 VAC/1 minute
7. 用于装配板
8. 标准:IEC320 C8
9. Safety Approvals(安全认证):
