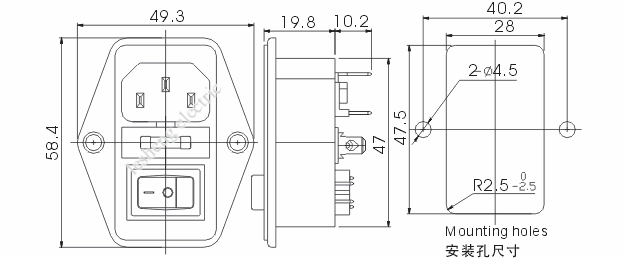

Socket with Fuse Holder

JR-101-1FR/DB-14-F6

Times：2018-01-03 03:34:40
JR-101-1FR/DB-14-F6
Online

Specifications:
1. 主体材料Body Material:Black Glass-Fiber Nylon 66.94V0
2. 电气参数Operating data:10A.15A, AC250V
3. 保险丝规格For fuses: Ø5×20,6.3A250V
4. 绝缘电阻Insulation resistance: DC 500V 100MΩ(min.)
5. 耐压Dielectric strength: 2000 VAC/1 minute
6. 装配方式：M3螺丝固定
7. Safety Approvals安全认证：
