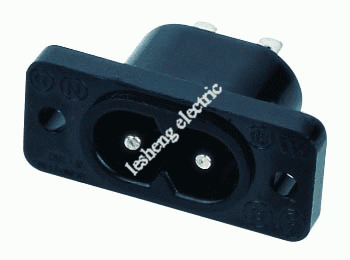

2-pole Socket

DB-8-7S1/R201A(00)/RF180-TL100

Times：2018-01-02 08:21:35
DB-8-7S1/R201A(00)/RF180-TL100
Online

Specifications:
1. 主体材料Body Material: Black Glass-Fiber Nylon 66.94VO
2. 电气参数Operating data: 2.5A, AC250V
3. 绝缘电阻Insulation resistance: >100 MΩ/500Vdc
4. 耐压Dielectric strength:3000 VAC/1 minute
5. 装配方式：M3螺丝固定
6. Safety Approvals安全认证：
(尺寸及相关认证等技术参数务请确认为准)
