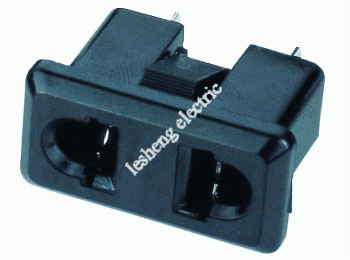

2-pole Socket
SS-6D1
- Times：2018-01-02 08:09:38
- SS-6D1
-
Specifications:
1. 主体材料Body Material: Black Glass-Fiber Nylon 66.94V0
2. 电气参数Operating data: 15A, AC250V/AC250V
3. 接触电阻Contact Resistance:< 5mΩ
4. 绝缘电阻Insulation resistance: >100 MΩ/500Vdc
5. 耐压Dielectric strength: 2000 VAC/1 minute

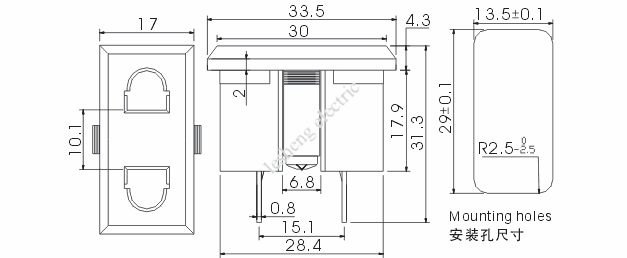

6. 用于装配板:装配板厚度0.8-2.5mm
7. 标准:IEC320 C8
8. Safety Approvals(安全认证):
