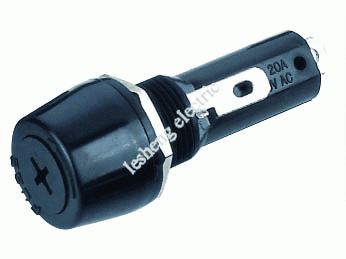

Fuse holder for panel mounting

CFH052S

Times：2017-12-25 13:06:19
CFH052S
Online

Electrical Characteristics 电气特性

For Fuse	Rated Amperage	Rated Voltage	Operating Power	Contact Resistance	Insulation Resistance	Dielectric Strength
保险丝规格	额定电流	额定电压	额定功率	接触电阻	绝缘电阻	耐压
6 x 30	20A	250V	4W	<5mΩ	>100 MΩ	>3000Vac/60”

· Cap Type 冒盖型式: Screw Type 螺纹手拧式
· Material材料：Insulating Body 绝缘体：PR UL 94 V0
Contact 接触件：CuZn 37 + Ni + Sn
· For panel mounting 用于装配板

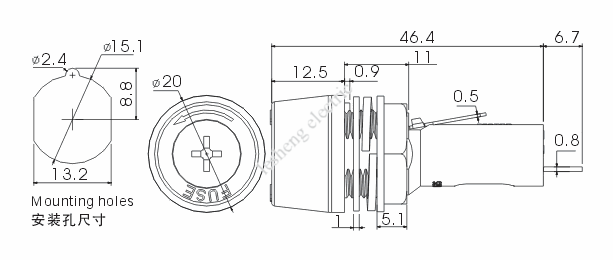

· Mounting装配方式: Fastening by nut用螺母旋紧固定
· Safety Approvals安全认证：
