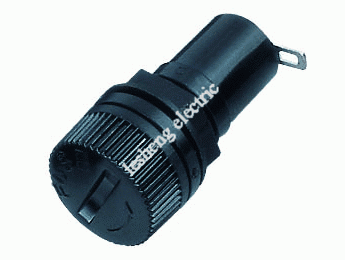

Fuse holder for panel mounting

PTF30

Times：2018-03-28 04:33:29
PTF30
Online

Electrical Characteristics 电气特性

For Fuse	Rated Amperage	Rated Voltage	Operating Power	Contact Resistance	Insulation Resistance	Dielectric Strength
保险丝规格	额定电流	额定电压	额定功率	接触电阻	绝缘电阻	耐压
5 x 20	10A	250V	2.5W	<5mΩ	>100 MΩ	>3000Vac/60”

· Cap Type 冒盖型式: Screw Type 带一字槽螺纹旋紧式
· Material材料：Insulating Body 绝缘体：PBT UL 94 V0
Contact 接触件：CuZn 37 + Ni + Sn
· For panel mounting 用于装配板
· Mounting装配方式: Fastening by nut用螺母旋紧固定
· Safety Approvals安全认证：
